Elast Recorder & Elastmeter HQ Sonde

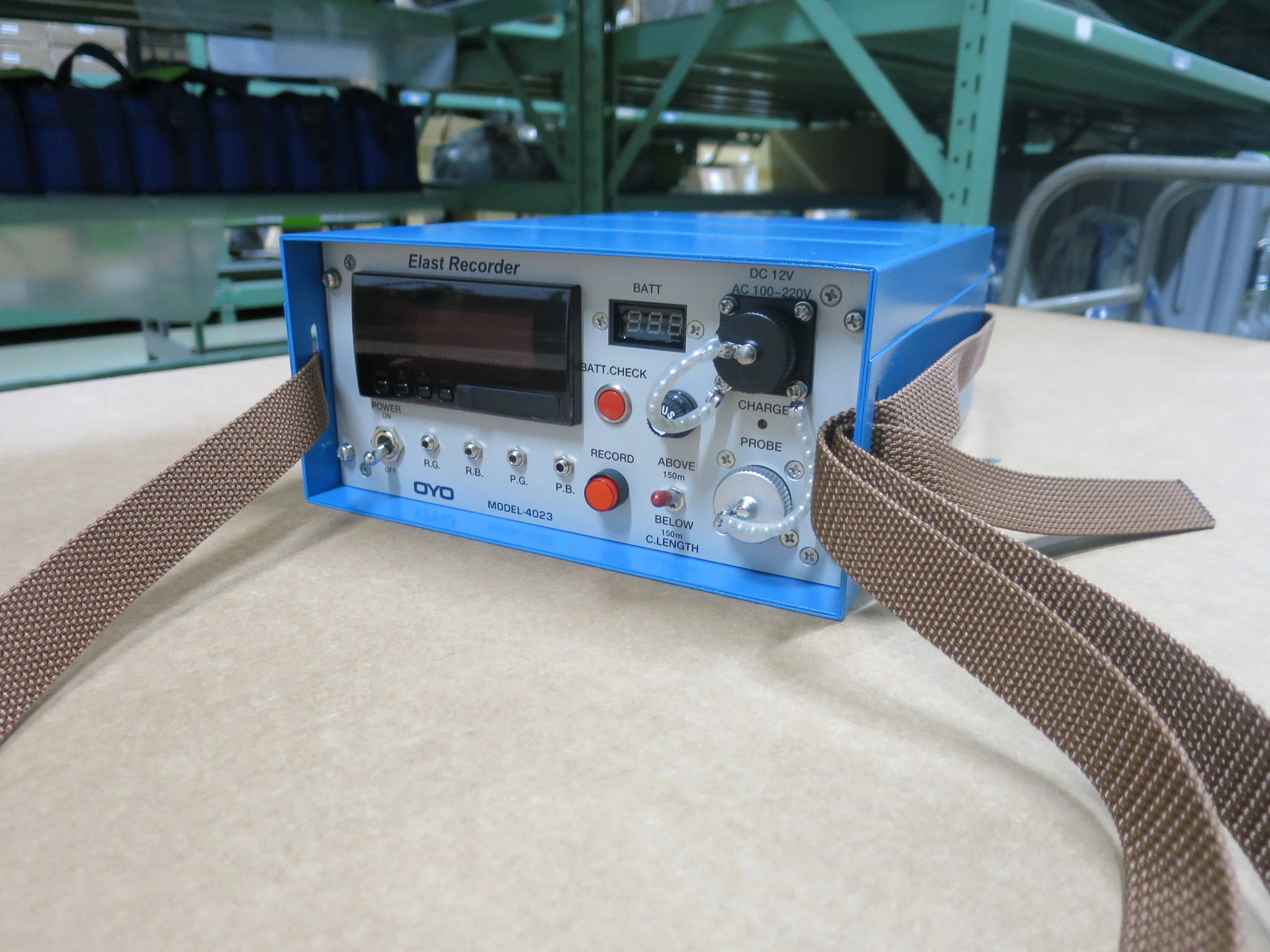

Elast Recorder is light-weight, compact and easy-to-use design of the Elast Recorder makes it easy to handle on-site.

Data can be recorded using the "Elast Recorder" and can be output using micro SD card.

Elastmeter is a borehole lateral load tester that enables measurement of stress and deformation characteristics of the wide range ground from soft rock to hard rock. It is effective for the foundation design of large-scale structures such as high-rise buildings, dams and bridges.

Elast Recorder & Elastmeter HQ Sonde

Download

Specification

Elast Recorder (MODEL-4023)

Display Pressure and displacement to be displayed in digital values
Record the data with micro SD card
Displacement display (ΔRn): ±19.99mm
Pressure display (P): ±19.99MPa
Record Measurement interval
0.1, 0.2, 0.5, 1, 2, 5, 10, 15, 20 and30 seconds
1, 2, 5, 10, 15, 20, 30 and 60 minutes
Power supply External power supply: DC 12V (±10%)
Built-in battery: DC 12V 7.2 Ah
Operating temperature 0 to +50˚C
Outer dimensions (W) 220 X (H) 105 X (D) 310mm
Weight 6.2kg

Elastmeter HQ-Sonde (MODEL-4180)

Deformation detection method Caliper arm method (to measure the inside diameter of rubber tube)
Maximum pressurization 20MPa
Outside diameter φ62mm
Measurement distance length 520mm
