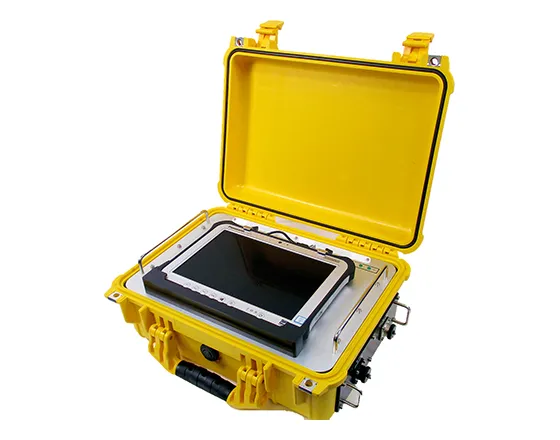

Elast Logger-3i & Elastmeter Digital Sonde
Elast Logger-3i is an advanced digital pressuremeter capable of testing wide range ground from soft rock to hard rock in combination with Elastmeter Digital Sonde.
A series of operations can be performed from data recording of pressure and displacement to plotting of results. Mechanical information such as Young's modulus can also be obtained quickly with Panasonic Tablet.
A thermal printer is available as an extra-cost option, and it enables users to print out obtained data at a site.
Features
- By converting the measured value into a digital signal inside the digital Sonde and transmitting it to Elast Logger-3i, the signal transmission stability is improved.
- User-friendly operating system by Panasonic Tablet controller.
- High brightness color LCD allows clear visibility even under direct sunshine.
- From the measurement of pressure to the displacement, easy and understandable displacement curves are available.
- By connecting "Digital Converting box for Elastmeter HQ Sonde", Elast Logger-3i is available to connect Elastmeter HQ Sonde (Model-4180) and Control cable for Elastmeter Digital Sonde.
Specification
Elast Logger-3i (Model-4302)
| OS | Windows 10 Professional 64bit |
|---|---|
| Display | 10.1inch TFT color LCD 1920 x 1200 pixel Pressure and displacement to be displayed in digital values and stress-strain curve |
| Storage Device | SSD 128GB (Interface: USB2.0 x 1 port) |
| Measurement Parameters | Pressure, displacement, and elapsed time |
| Data Storage | SSD 128GB |
| Operating Temperature | -5 to +45˚C |
| Dimensions | (W)420 x (H)175 x (D)335 mm |
| Weight | 8kg |
Elastmeter Digital Sonde (Model-4301)
| Deformation Detection Method | Caliper arm method (to measure the inside diameter of rubber packer tube) |
|---|---|
| Max. Pressurization | 20MPa (depends on a borehole and geological condition) |
Control Cable (for Elastmeter Digital Sonde)
| Outer Sheath | Polyurethane (Black Colored) |
|---|---|
| Outside Diameter | 5mm (4-cored) |
| Length | 100m (Standard) |
Accessories and Options
- High Pressure Hand Pump (Model-4185)
- High-pressure Tubing (Model-4153)
- Calibration Pipe
- Packer Tube (Soft, Hard)
- Thermal Printer
- Battery Pack
- Step-down Transformer
- Digital Converting Box for Elastmeter HQ Sonde
Applicable borehole and pressure
Elastmeter Digital Sonde
| Rubber Packer Tube | Diameter of Borehole | Pressure Limit (Hard Packer) | Pressure Limit (Soft Packer) |
|---|---|---|---|
| 60mm (BX) | Up to 70mm | 20MPa | 5MPa |
| Up to 76mm | 8MPa | 4MPa | |
| Up to 80mm | 3MPa | 1.5MPa | |
| 70mm (NX) | Up to 80mm | 20MPa | 5MPa |
| Up to 85mm | 8MPa | 4MPa | |
| Up to 90mm | 3MPa | 1.5MPa |
