JapaneseGeologger-GWS 3i & GW Combination Probe

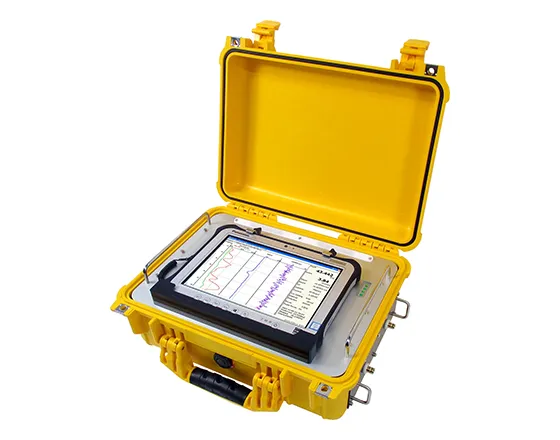

The Geologger GWS3i is a combined logging system that enables simultaneous measurements of three items: natural gamma, electric logging (16" and 64") and spontaneous potential by connecting it to the GW Combination Probe (Model-3493).
After excavation, by inserting a GW Combination Probe into the borehole and moving it up and down, the ground characteristics at various depths can be obtained.
- Download
Features
- Touch-panel tablet PC provides excellent operability.
- A 10.1-inch high-brightness color LCD display has been adopted.
- You can easily copy data from the USB2. 0 port to a USB flash drive.

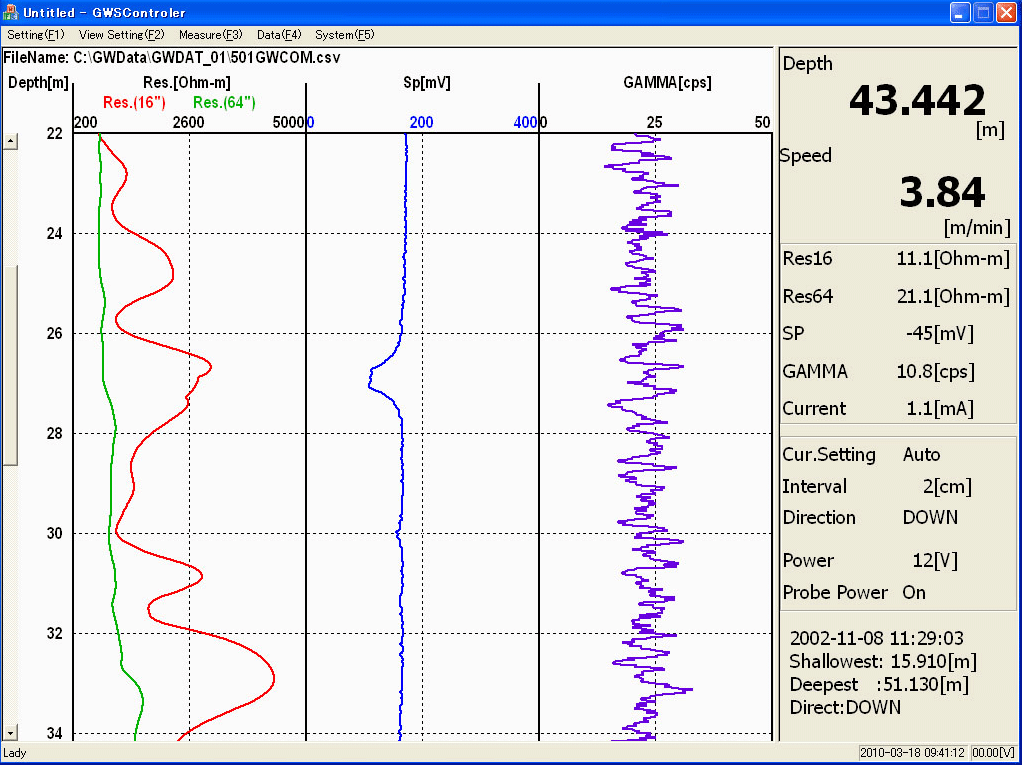

Display
Specification
Measurement
| Applicable probe | GW Combination Probe (Model 3493) |
|---|---|
| Probe diameter | φ40mm |
| Probe length | 1,700mm (detachable at M1 electrode) |
| Electric logging of measurement target (electrode interval 16", 64"•SP) |
Measuring range (SP): ± 2000mV |
| Flowing current:1, 2, 20, 60mA, Auto | |
| Power-on cycle: 20Hz | |
| Transmit voltage: 60V max | |
| Natural gamma | Measuring range:0 - 20kcps |
System integration
| Display | 10.1 inch Touch Panel with IPS Liquid Crystal Display (1920 x 1200 pixels) |
|---|---|
| OS | Windows10 Professional 64bit |
| Storage device | SSD 128GB |
| External I / F | USB2.0 × 1 port |
| Power supply | DC 12V Battery (10.8~13.2V) |
| Operating temperature | -5 to +45˚C |
| Dimensions | 420 (W) x 175 (H) x 335 (D)mm (excluding protrusions) |
| Weight | Approx. 10kg |
Options
| Printer | 110mm wide high-density thermal printer |
|---|
