Faster on-site measurements! Digital resistivity meter with built-in 8-component circuits

McOHM Profiler-8i is a multi-channel digital resistivity meter. The combination of this device and a Scanner-32 (sold separately) with an electrode-switching function enables efficient two-dimensional resistivity exploration.

Equipped with an 8-component receiver circuit consisting of a high-resolution 24-bit sigma-delta A / D converter, an energizing circuit (up to 400V "800 Vp-p"•200mA), and a tablet PC-based controller.

Download

McOHM Profiler-8i [MODEL-2160]

Features
Display
Specification

Features

A tablet PC-based controller provides a 10.1-inch high-brightness color LCD with high visibility and touch panel function.
8-channel simultaneous measurement greatly reduces on-site work time
Up to 192 electrodes can be connected by combining the unit with Scanner-32 (sold separately).
Supports IP measurement
In addition to automatic measurement using a program, automatic timer measurement using the built-in clock is also possible.
Decay curve plotting function is effective for on-site data quality control.
Measurement data is recorded on the built-in hard disk of tablet PC-based controller.
Compact, lightweight, and power-saving designs

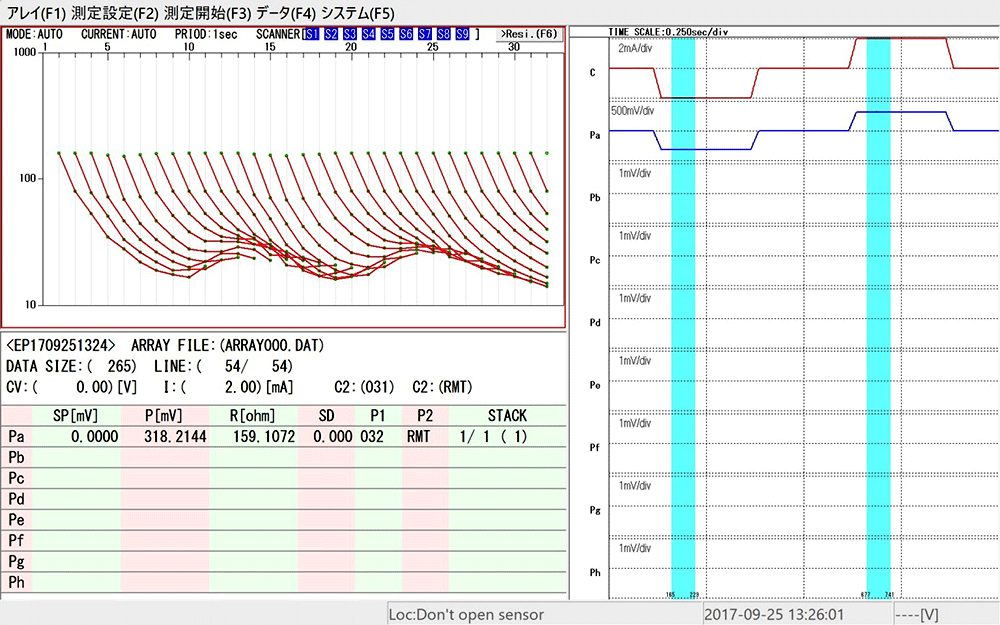

Display

Specification

System

CPU	Intel Core i5 2.4GHz
OS	Windows 10 Pro (64bit)
System memory	4GB
Data format	CSV format
Display	10.1-inch IPS LCD (1920x1200 pixels), with touch panel function
Built-in memory	SSD 128GB
Interface	USB3.0: 2 port
Power supply	DC 12.0V
Operating temperature	-10 to +50˚C (no condensation)
Dimensions	429mm (W) × 557mm (D) × 219mm (H)

Measuring unit

Electric current supply system	Constant-current system
Output voltage	Maximum 400V (800 Vp-p)
Output current	AUTO,1, 2, 5, 10, 20, 50, 100, 200mA
Number of channels	8 channels (all AD channels isolated type, 24-bit)
